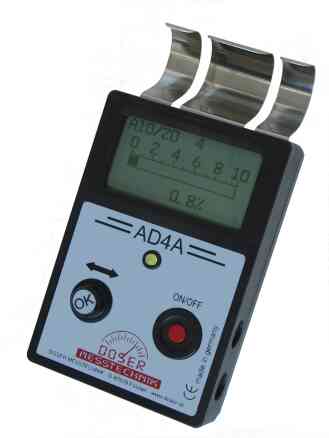

Universal Moisture Meter AD4A

list price: 619 EUR (in Germany additional 19% tax)

not valid for all countries, additional packing and shipping, based on our Terms and Conditions of Trade.

Instrument for measuring moisture in wood, building materials, paper, cardboard, isolation materials and others.

  • non-destructive, only lay on and read of the moisture value!
  • capacitive moisture measuring principle
  • quick analog bargraph display ( 100 measurements per second)
    therefore good for detection of moisture differences
  • additional digital display
  • big display
  • simple material selection with turning knob
  • automatic zero point correction
  • easy detection of moisture differences
During measurements a material text is shown. For each meter material curves, sorted in groups, can be composed individually.
Fixed linearisation curves for a lot of common materials are already stored and can be selected.
USB interface: with the optional Windows based software DOSOFT measured values can be transferred and stored on the mass storage of the PC.

Technical Data:
measuring range:  0 - 100%, adjustable
resolution:              0,1%
measuring depth:      approx. 4 cm
damping:                  0 - 99% adjustable
storage:                    1000 measuring values
dimmension:         approx. 200 x 80 x 40 mm
weight:                   approx. 250 g
interface:                USB
software:                DOSOFT
batteries:                 Mignon (AA), 2 pieces

Optional: test modules PE05 and PE30 for regularely calibration measurements.

Optionale external sensors for
air temperature, rel. air humidity, dew point, surface temperature
are available.

It can aso be used in caravans, trailers, mobile homes and for measuring moisture in glass fibre plastic boats

DOWNLOAD:
operating manual




request and order: info@doser.de
